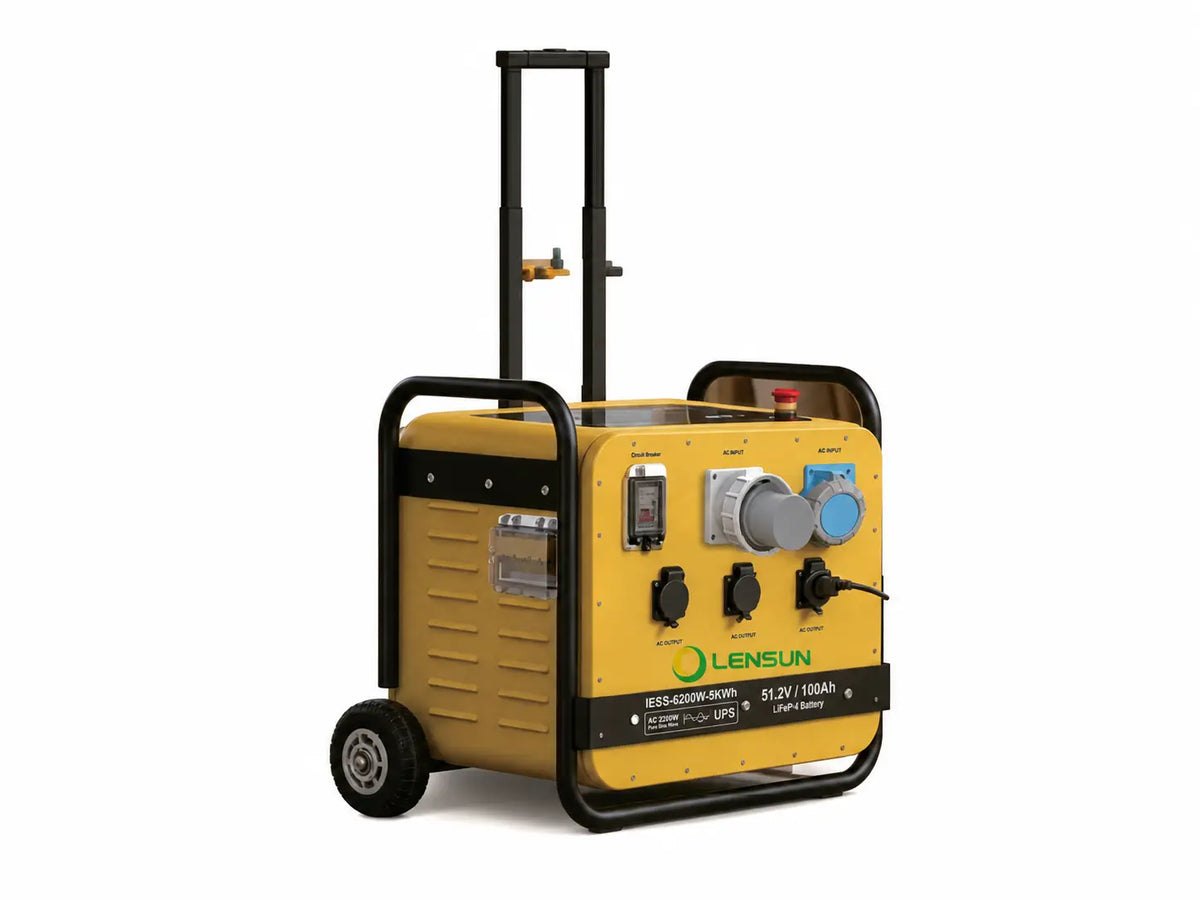

5kWh All-in-One Energy Storage System

All-in-One Energy Storage System

IESS-6200W-5kWh

5kWh All-in-One Energy Storage System

All-in-one 5kWh energy storage system with 6200W rated AC output, 5120Wh LiFePO4 battery capacity and up to 6000W PV input.

Rated Output: 6200W
Battery Capacity: 5120Wh
Max PV Input: 6000W
MPPT Range: 120–450V

Key features

Integrated Solar Storage & AC Power

Core battery, PV and AC specifications are summarized before the complete technical table.

LiFePO4 Battery

51.2V / 100Ah lithium iron phosphate battery configuration.

6200W AC Output

Rated and maximum AC output power are specified at 6200W.

6000W PV Input

PV input supports up to 6000W with a 120–450V MPPT operating range.

10ms Transfer

Typical bypass-to-inverter transfer time is specified at 10ms.

Applications

All-in-One Energy Storage

Integrated battery, PV input and AC power functions for energy storage and backup applications.

Home Energy Storage Solar Storage Backup Power Mobile Deployment

Full specification

Technical Specifications

Battery Specifications

Battery Type: LiFePO4, 51.2V / 100Ah
Battery Voltage Range: 40V–60V
Max Charging Current: 200A
Max Output Current: 200A
Rated Charging Power: 4000W
Rated Discharging Power: 6200W
Battery Capacity: 5120Wh

PV Input

Maximum Input Power: 6000W
Start-up Voltage: 120V
MPPT Operating Voltage Range: 120–450V
Maximum Open-Circuit Voltage: 500V
Single MPPT Input Current: 20A
Single MPPT Max. Input Current: 22A
MPPT Input Channels: 1

AC Input

Rated Input Voltage: 220V / 230V
Input Voltage Range — UPS Mode: 170–280Vac ±2%
Input Voltage Range — APL Mode: 90–280Vac ±2%
Input Frequency: 50Hz / 60Hz, auto-sensing
50Hz Frequency Range: 47±0.3Hz – 55±0.3Hz
60Hz Frequency Range: 57±0.3Hz – 65±0.3Hz
Max Bypass Overload Current: 40A
Transfer Time: 10ms typical

AC Output

Rated Output Power: 6200W
Maximum Output Power: 6200W
Rated Output Voltage: 200V / 208V / 220V / 230V / 240V
Output Voltage Error: ±5%
Output Voltage Range: 180–270V
Rated Operating Frequency: 50 / 60Hz ±2%
Maximum Output Current: 27A
