Wide AC Input
90–280VAC input range with 45–65Hz frequency range.
← Back to product catalog

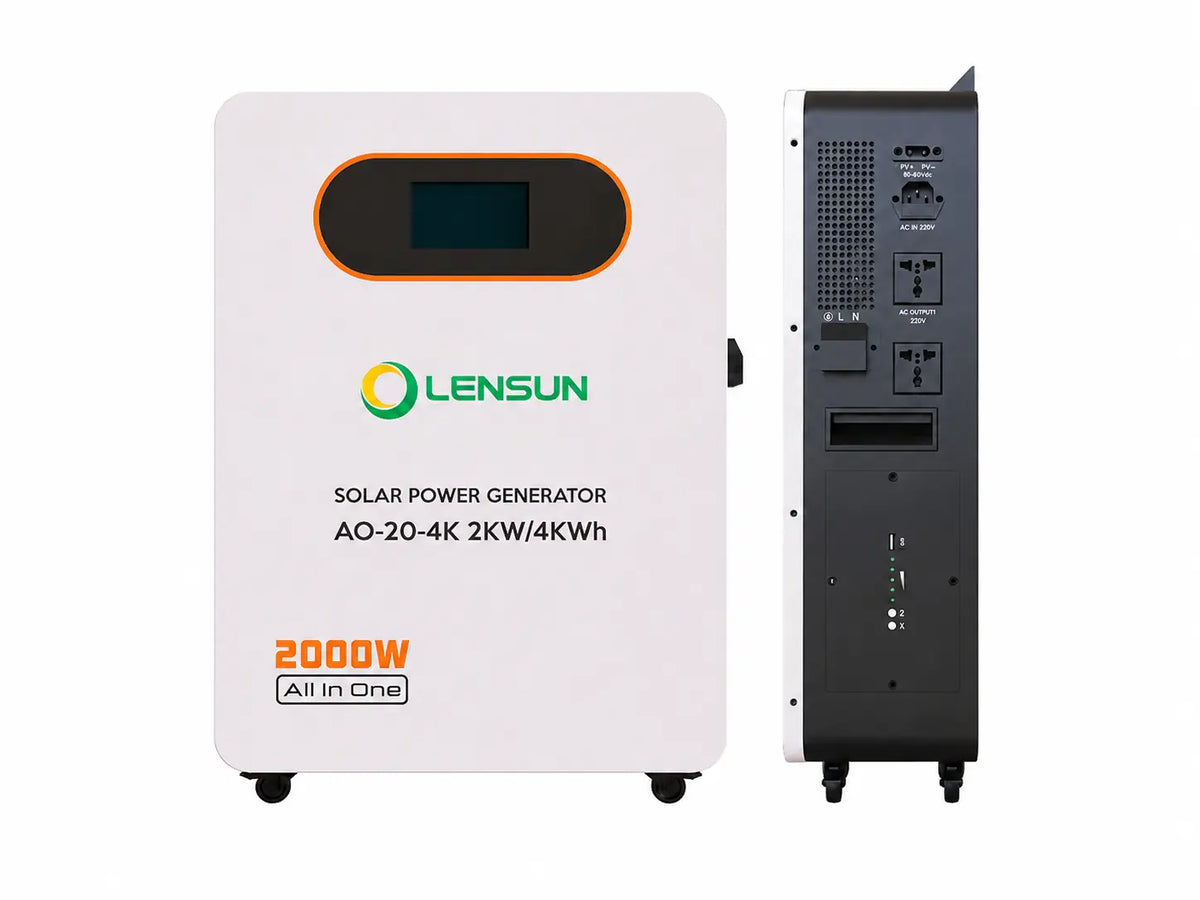

Portable Power Station
2000W 4000Wh
4kWh Portable Power Station
2000W rated portable power station with 4kWh cell capacity, 1200W maximum PV charging power and 1500W maximum charging power.
- Rated Output
- 2000W
- Battery Capacity
- 4kWh
- Dimensions
- 550×410×160mm
- Ingress Rating
- IP21
Key features
Core Power & Charging Functions
Key operating specifications are summarized here before the complete technical table.
Solar PV Charging
Dedicated PV input supports solar-assisted charging within the specified voltage range.
Utility + Solar Charging
Combined charging capability is specified for utility and solar input.
Portable Power Outputs
AC and auxiliary output interfaces are provided according to the model specification.
Applications
Flexible Backup & Mobile Power
Suitable for portable backup power and solar-assisted power applications.
Full specification
Technical Specifications
Core Electrical
- Model
- 2000W 4000Wh
- Rated Power
- 2000W
- Cell Capacity
- 4kWh
- Built-in Cell Capacity
- 12.8V 314Ah
AC Input & Output
- AC Output Voltage
- 185–230VAC, 50–60Hz
- AC Output Power
- 2000W Max
- AC Input Voltage
- 90–280VAC, 45–65Hz
- AC Charging Power
- 1500W Max
PV & Charging
- PV Charging Power
- 1200W Max
- PV Input Voltage
- 18–110Vdc
- Utility + Solar Charging Power
- 1500W Max
- Solar Panel
- 600W × 2 pcs
Other Specifications
- USB Output
- 5V 15W × 1 pc
- Operating Temperature
- -10°C ~ +50°C
- Ingress Protection
- IP21
- Dimensions
- 550 × 410 × 160mm
