Wide AC Input
90–280VAC input range with 45–65Hz frequency range.
← Back to product catalog
Portable Power Station
500W 1000Wh

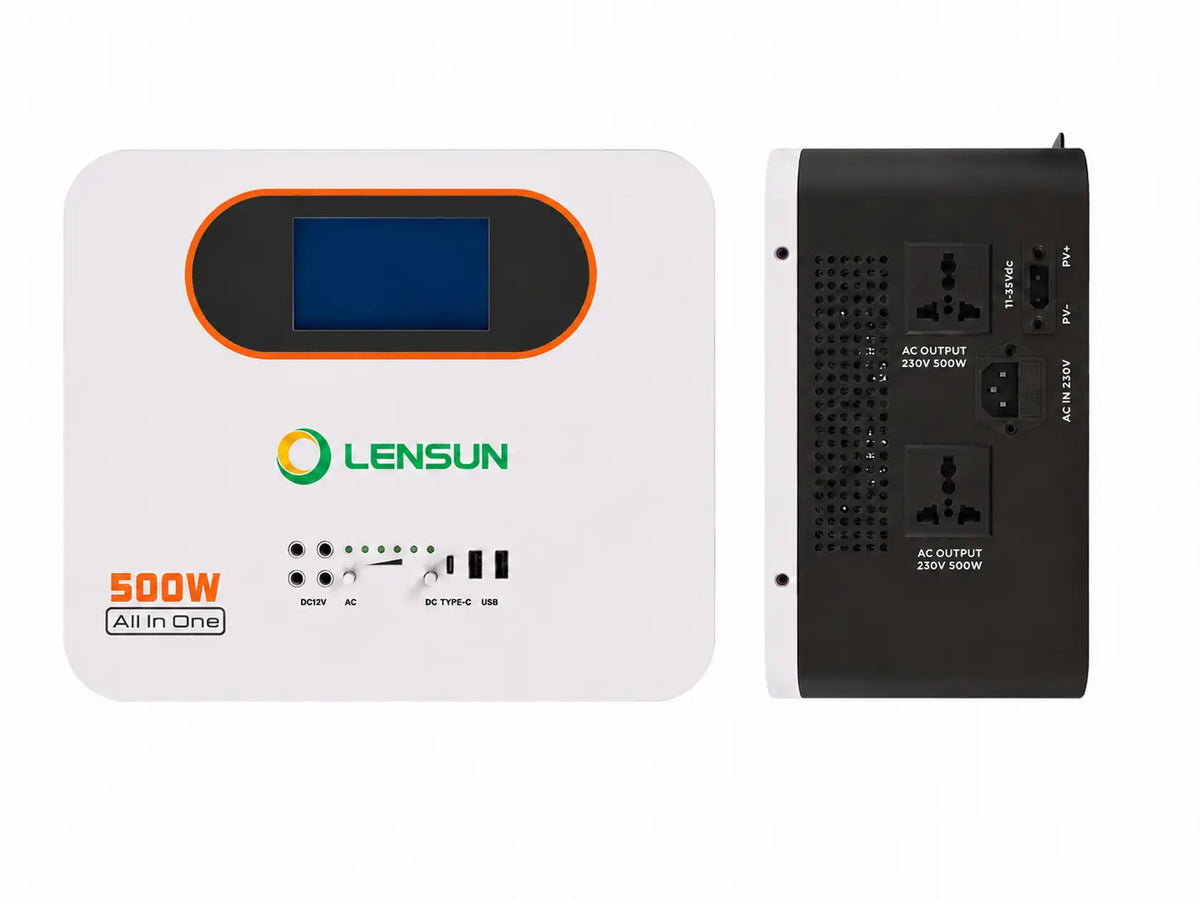

1kWh Portable Power Station
500W rated portable power station with 1kWh cell capacity, wide-range AC input and 300W maximum PV charging input.
- Rated Output
- 500W
- Battery Capacity
- 1kWh
- Dimensions
- 260×320×150mm
- Ingress Rating
- IP21
Key features
Core Power & Charging Functions
Key operating specifications are summarized here before the complete technical table.
Solar PV Charging
Dedicated PV input supports solar-assisted charging within the specified voltage range.
Utility + Solar Charging
Combined charging capability is specified for utility and solar input.
Portable Power Outputs
AC and auxiliary output interfaces are provided according to the model specification.
Applications
Flexible Backup & Mobile Power
Suitable for portable backup power and solar-assisted power applications.
Full specification
Technical Specifications
Core Electrical
- Model
- 500W 1000Wh
- Rated Power
- 500W
- Cell Capacity
- 1kWh
- Built-in Cell Capacity
- 3.2V 314Ah
AC Input & Output
- AC Output Voltage
- 185–230VAC, 50–60Hz
- AC Output Power
- 500W Max
- AC Input Voltage
- 90–280VAC, 45–65Hz
- AC Charging Power
- 500W Max
PV & Charging
- PV Charging Power
- 300W Max
- PV Input Voltage
- 11–55Vdc
- Utility + Solar Charging Power
- 500W Max
- Solar Panel
- 150–550W × 1 pc
Interfaces & Mechanical
- USB Output
- 5V 15W × 2 pcs
- Type-C Output
- 5V 20W × 1 pc
- DC-5521 Output
- 12V 48W × 4 pcs
- Operating Temperature
- -10°C ~ +50°C
- Ingress Protection
- IP21
- Dimensions
- 260 × 320 × 150mm
